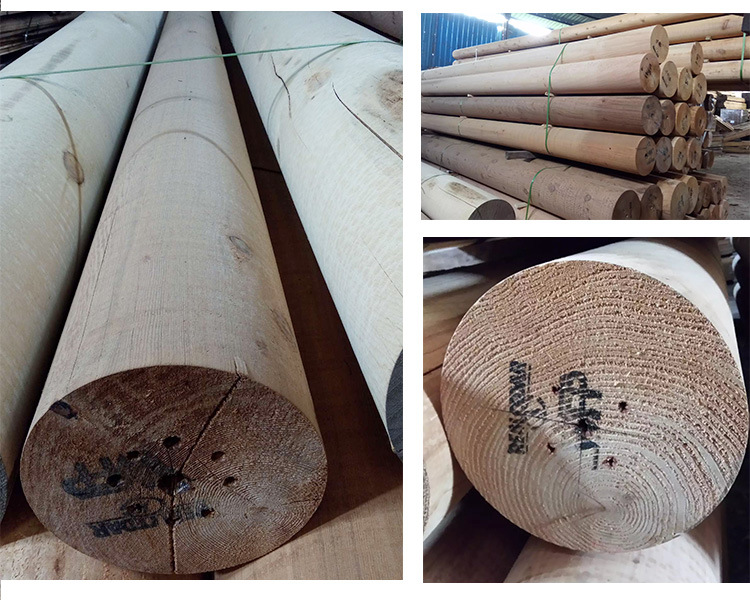

Temple Load-Bearing Round Wooden Column-11

Short Description:

#Name:Temple load-bearing round wooden column
#Brand:Yamazonhome
#Model number:Yamaj-0045
#Material:Larch
#Size: Customized
#Style:Modern simple
#Origin:Weifang,China
#Applicable occasions:wooden house, outdoor gazebo


Product Detail

Product Tags

4589741441_1776943973

Chapter 1

For the purpose of wind or earthquake engineering, columns may be designed to resist lateral forces. Other compression members are often termed "columns" because of the similar stress conditions. Columns are frequently used to support beams or arches on which the upper parts of walls or ceilings rest.

Chapter 2

In architecture, "column" refers to such a structural element that also has certain proportional and decorative features. A column might also be a decorative element not needed for structural purposes; many columns are engaged, that is to say form part of a wall. A long sequence of columns joined by an entablature is known as a colonnade.
1789140742
829722554a6677468bd9acdeb531a50

Chapter 3

A column or pillar in architecture and structural engineering is a structural element that transmits, through compression, the weight of the structure above to other structural elements below. In other words, a column is a compression member.

Chapter 4

The Greeks developed the classical orders of architecture, which are most easily distinguished by the form of the column and its various elements. Their Doric, Ionic, and Corinthian orders were expanded by the Romans to include the Tuscan and Composite orders.
ùøõö

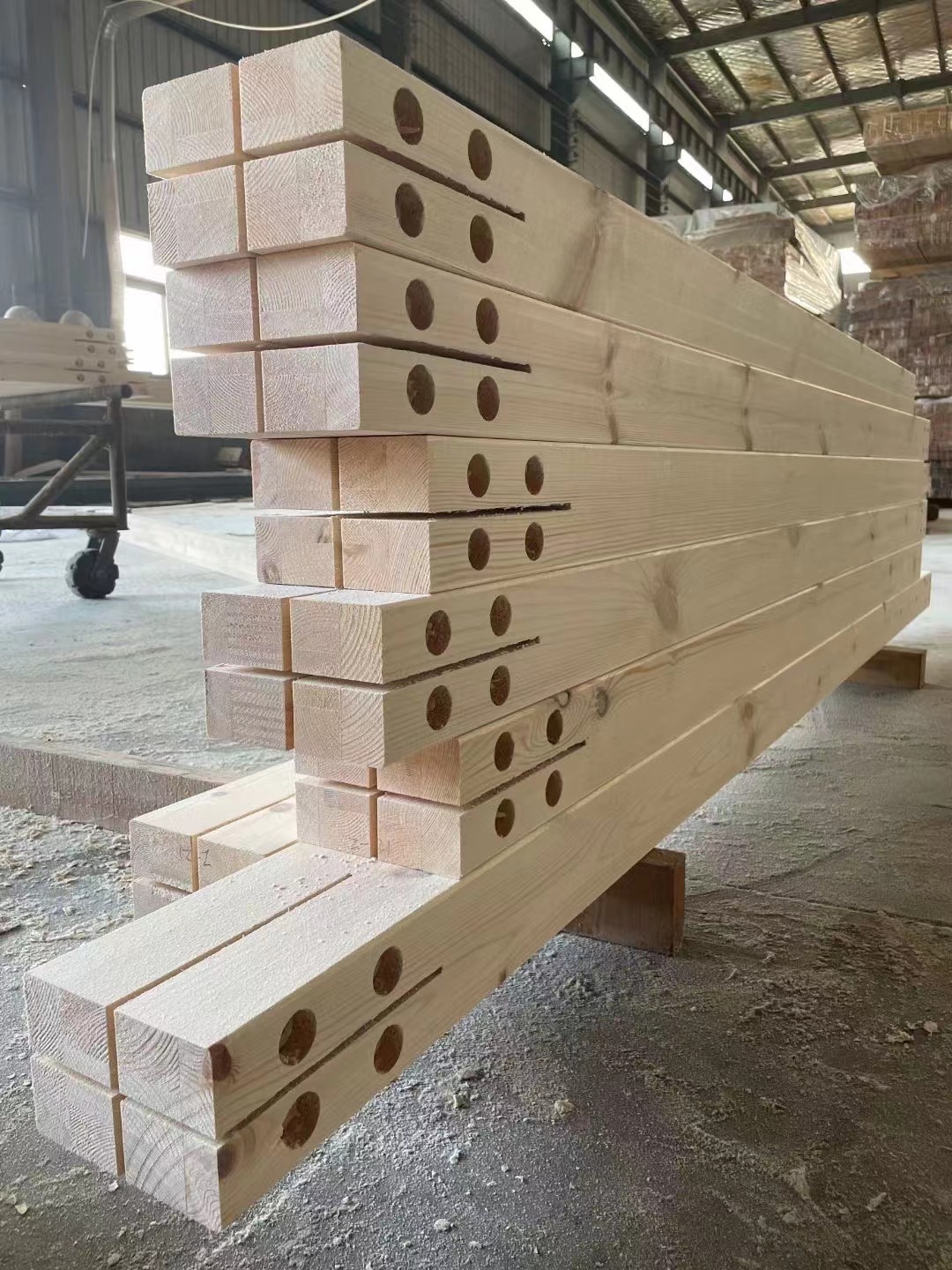

  1. The glulam structure is divided into two types: the plywood structure and the orthogonal glulam structure. Laminated glulam structures are mainly suitable for single- or multi-storey wooden structures with large spans and large spaces. Orthogonal glulam structures are mainly suitable for floor and roof structures, or single- or multi-layer box-type wood structure buildings composed of orthogonal glulam.
  2. The fiber direction of each ply of the plywood component should be consistent with the length of the component. The number of laminate layers in the section of the laminated glulam component shall not be less than 4 layers.
  3.  The directions of the fibers between the layers of the orthogonal glulam components should be stacked and orthogonal to each other. The number of layers of the cross-section should not be less than 3 layers, and it is not suitable for more than 9 layers, and the total thickness should not be greater than 500mm.
  4. When designing the laminated glulam components and orthogonal glulam components, the requirements for structural glue should be indicated according to the use environment, and the component manufacturers should strictly follow the design requirements for production.
  5. The design and construction requirements of the laminate-laminated timber structure should comply with the relevant requirements of the current national standard "Technical Specifications for Glued-Laminated Timber Structures" GB/T50708.
  6. The production requirements of the laminated wood structure should comply with the relevant provisions of the current national standard "Technical Specification for Glued Wood Structure" GB/T50708 and "Glulam for Structural Use" GB/T26899.
  7. The thickness t of the laminate is: 15mm≤t≤45mm; the size of the boards used for making cross-laminated wood should meet the following requirements: the width b of the laminate is: 80mm≤b≤250mm.
  8. Orthogonal glulam should be composed of boards of the same length and thickness of the same layer. The board can be lengthened with finger joints, and the strength of the finger joints should meet one of the following requirements: f t,j,k≥5+f tk m,j,k≥8+ f tk where; f t,j,k --Standard value of tensile strength of finger joints (N/mm2); f m,j,k--standard value of flexural strength in width direction of finger joints (N/mm2); f tk--standard of tensile strength of template value (N/mm2).
  9. Orthogonal glulam components can be used for floor panels, roof panels and wall panels, and the design of the components shall comply with the relevant provisions of Appendix G of this code.
  10. The length direction of the outer layer of orthogonal glulam should be arranged along the grain, and two layers of wood can be arranged along the grain as the outer layer. When required by the design, the cross-grain laminate can also be used in a two-ply plank configuration.
  11. Orthogonal glulam components can be connected by finger joints, and should meet the following requirements: when the components are finger-joined, the laminates of the cross-sections at both ends of the components at the finger joints should be arranged in the same way, and the grain direction of the components should be consistent accordingly; The finger joint length of the finger joint should not be less than 45mm.
  12. When the cross-laminated wood components are connected by finger joints, the strength of the finger joint joints shall be determined according to the following regulations: when the strength verification experiment at the finger joint joints of the components is carried out according to the relevant national experimental standards, the strength of the joints shall be determined. The standard value of flexural strength shall not be lower than the standard value of flexural strength of finger-jointed members required by the design; when the strength verification experiment at the finger-jointed joints of the members is not carried out, the design values of the flexural strength and tensile strength of the finger-jointed joints of the members shall be It can be taken as 67% of the value of the fingerless member, and the design value of the compressive strength is the same as that of the fingerless member.
  13. When the cross-laminated wood is glued, the surface of the board is smooth, free of dust, impurities, pollutants and other exuding substances that affect the bonding. After gluing, the laminate should be glued under pressure within the time specified by the adhesive used, and the glued surface should not be contaminated before gluing.
  14. The splicing surface between the outer parallel grain boards of the same layer with orthogonal glue is suitable for gluing with adhesive. Splicing can be adopted for the splicing surface between the inner side grain wood board of the same layer and the horizontal grain wood board of the same layer. However, the splicing gap should not be greater than 6mm.
  15. The adhesive used in cross-laminated wood should meet the requirements of strength and durability, and the type and performance requirements of the adhesive should comply with the relevant provisions of the current national standard "Technical Specifications for Glued Wood Structures" GB/T26899.
